Product Summary
Xplorer™
Capacity (Ah)
100
Warranty (Years)
5
Terminal Layout
Positive on Left (Layout 1)
Terminal Type
Bolt Through Terminals (Type 2)
H: 210mm x W: 168mm x L: 306mm

£399.98Including VAT & Standard Delivery
Express Delivery Available

Out of stock

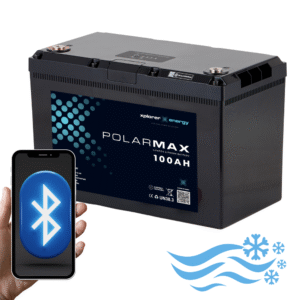

12V Lithium battery by Xplorer for Lead acid battery replacements.

General Information

This specification defines the performance of rechargeable LiFePO4 battery pack XP-12100F-M110A , describes the type, performance, technical characteristics, warning and caution of the battery pack.

Battery Specification(@ 25±5℃)

NOItemsCharacteristics
2.1Normal capacity100Ah
2.2Nominal energy1.28KWh
2.3Nominal voltage12.8V  (LFP-4S4P)
2.4Internal resistance≤30mΩ @1kHz AC
2.5Series parallel applicationSupport max.4pcs in series 4pcs Parallel
2.6Normal charge voltage14.6±0.2V
2.7Float charge voltage(for Standby use)13.8±0.2V
2.8Allowed MAX charge current100A
2.9Recommended charge current≤50A
2.10Allowed MAX discharge current100A/30min
Peak current350A/3s
2.11End of discharge voltage10.0V
2.12Dimensionlength   307±2 mm
width   168±2 mm
height   211±2 mm
2.13Weight (No accessories)About:12.5Kg
2.14Operation temperatureCharge0~45℃
Discharge-20~60℃
2.15Self-discharge rateResidual capacity≤3%/Month;  ≤15%/ year
Recover capacity≤1.5%/Month;  ≤8%/ year
2.16Storage environment≤1month-20~+60℃、5~75%RH
≥3month-10~+45℃、5~75%RH
Recommend environment15~35℃、5~75%RH

Electrical Characteristics & Test Condition

Testing Conditions:  Ambient Temperature: 25±5℃; Humidity:45%~75%.

Normal charge:Charge battery under CC(0.33C)/CV(14.6V) mode until over charge protection or the charge current reduce to 0.05C, and then rest for 1h.

NOItemsCriterionCondition
3.1Normal Capacity100AhAfter Normal charge, discharge @0.33C current to the end of discharge voltage.
3.2Internal Impedance≤30mΩ@50% SOC @1kHz AC internal resistance test instrument.
3.3Short circuit protectionAuto cutoff load when short circuitConnect the positive and negative of this battery pack through a lead with 0.1Ω resistance.
3.4Cycle life @DOD 50%≥3000 [email protected] 50% DOD

>1500 cycles @ 100% DOD

After Normal charge,discharge @0.33C current to the end of discharge voltage. Repeat above process until discharge capacity reduce to 80% of initial value.
3.5Discharge temperature

[email protected]

-20℃(6h)≥60%Capacity @specified temperature

Capacity @ 25℃

0℃(6h)≥80%
25℃(4h)≥100%
55℃(4h)≥95%
3.6Capacity retention rateremain capacity

≥96%

After normal charge, store the battery @25±5℃ for 28days, then discharge capacity @0.33C,the retention capacity accord with criterion.

Circuit Protection

The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

NoItemContentCriterion
4.1Over chargeOver-charge protection for each cell3.75±0.05V
Over-charge release for each cell3.60±0.04V
Over-charge release methodUnder the release voltage
4.2Over dischargeOver-discharge protection each cell2.50±0.04V
Over-discharge release for each cell2.80±0.04V
Over-discharge release methodCharging
4.3Over currentCharge over current protection115±5A,delay time 20±2s
Charge over current releaserelease after 30S
Discharge over current protection1115±5A,delay time 20±2s
Discharge over current protection1300±20A,delay time 3.5±0.5s
Discharge over current releaserelease after 30S
Short circuit protectionAvailable
4.4TemperatureCharge over temperature protection[email protected]±3℃; [email protected]±3℃;
Charge under temperature protection[email protected]±2℃; [email protected]±2℃
Discharge over temperature protection[email protected]±3℃; [email protected]±3℃;
Discharge under temperature protection[email protected]±3℃; [email protected]±3℃;









Height (mm)

210

Length (mm)

306

Width (mm)

168

20 Hour

100

BMS Protection

Yes

Brand

Xplorer™

Capacity (Ah)

100

Charging Temp

-2℃~45℃

Construction

Lithium

Ideal Charge Voltage

14.6v

Lithium Cell Type

Cylindrical

Maintenance Free

Yes

Operating Discharge Temp

-20~60℃

Parallel Connection

Yes- 4 Max

Product Type

Battery

Recharge Cycles

3000

Series Connection

Yes- 4 max

Suitable for use with motor mover?

Yes

Suitable for wild camping?

Yes

Terminal Layout

Positive on Left (Layout 1)

Terminal Type

Bolt Through Terminals (Type 2)

Top Up Charge Voltage

13.8v

Voltage

12V

Warranty (Years)

5

Weight (kg)

12.8
