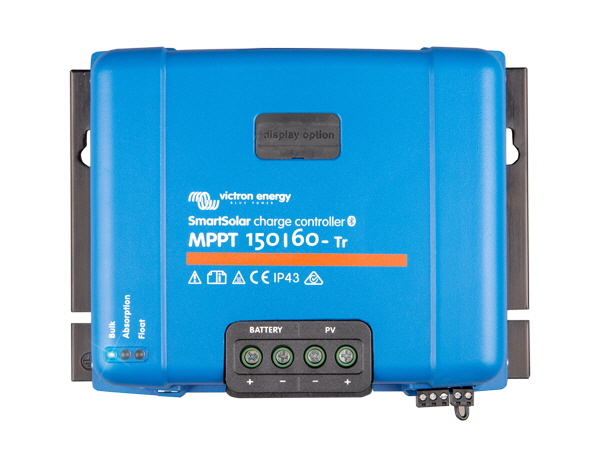

Victron Energy Smart Solar 150/60-tr MPPT Solar Charge Controller with Bluetooth (12/24/48v) 60A – SCC115060211

Victron Energy Smart Solar 150/60-tr MPPT Solar Charge Controller with Bluetooth (12/24/48v) 60A – SCC115060211

These ultra-fast, Maximum Power Point Tracking (MPPT), solar charge controllers are Bluetooth accessible via either built in Bluetooth or the Victron Energy Bluetooth dongle. Utilising the free VictronConnect app many parameters can be viewed and set, such as battery voltage, solar history, load output, flexible battery charge algorithms plus day/night timing and light dimming options. These advanced MPPTs also include Advanced Maximum Power Point Detection in case of partial shading conditions.

Features

Bluetooth Smart built-in: dongle not needed

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct

For a wired data connection to a Color Control panel, PC or other device

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Real-time data display options

– Apple and Android smartphones, tablets and other devices.

– Color Control panel.
