Victron Energy Ekrano GX – BPP900480100

Ekrano GX: communication-centre

The Ekrano GX represents the next generation in the GX product family. With its complete range of
connections and interfaces as well as a built-in 7-inch touchscreen display, it is the most powerful GX
device to date and allows you to always have perfect control over your system from wherever you are
and to maximise its performance. Simply access your system via our Victron Remote Management
(VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD) or our
VictronConnect app thanks to its built-in WiFi Access Point. The Ekrano GX is also the successor to the
Color Control GX.
Built-in 7-inch touchscreen display
The seven-inch touchscreen display gives an instant overview of your system and allows you to adjust
settings. The touch function can be disabled (or enabled) via a recessed button on the back to prevent
unauthorised use. When mounted using the supplied steel bracket, the display is watertight from the
outside.
Remote Console on VRM
Monitor, control and configure the Ekrano GX remotely, over the internet, just like if you were standing
in front of the device, using the Remote Console. The same functionality is also available via local LAN
network or via the built-in WiFi access point of the Ekrano GX.

Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator,
and mains, or check tank levels and temperature measurements. Easily control the shore power input
current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on
alerts, perform diagnostic checks and resolve complications remotely.

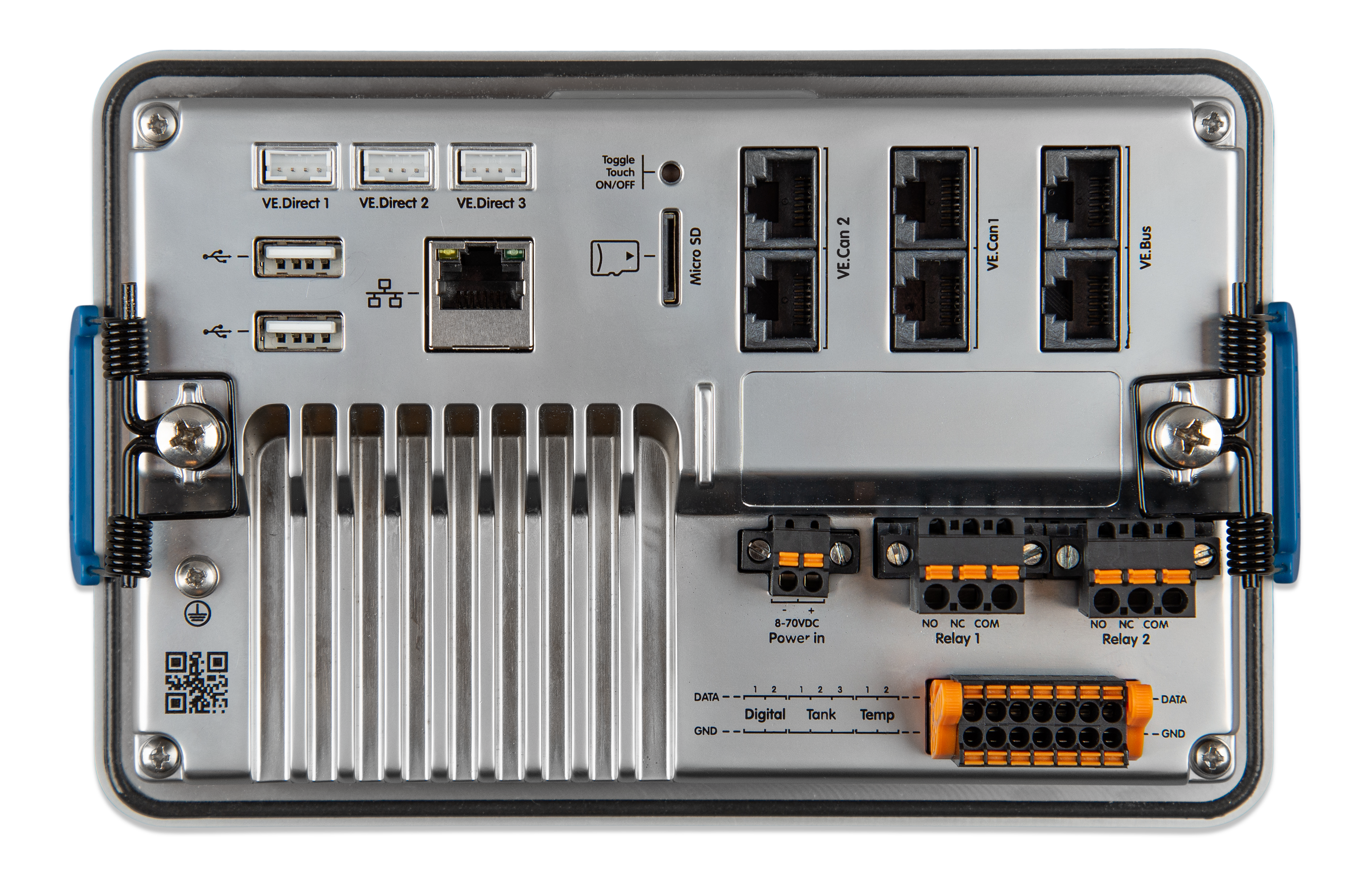

Simple mounting and configuration

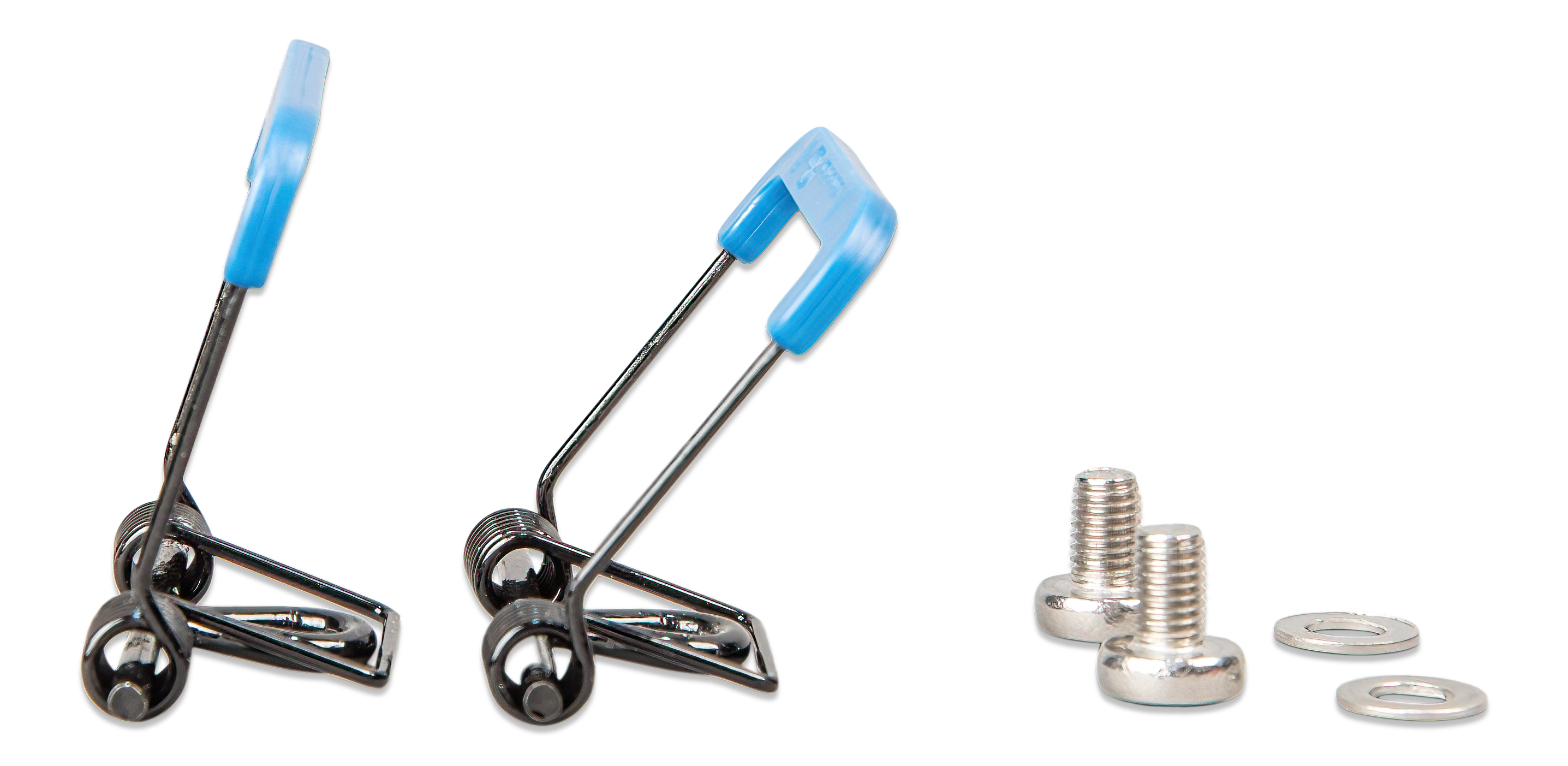

The Ekrano GX installs easily via a cut-out for flush panel mounting and includes both a steel bracket
and springs for blind hole mounting. All ports are easily accessible from the back. The power and relay
terminal blocks can be screwed in place and the IO terminal block has a quick release clamp for easy
access. The Bluetooth feature allows for quick connection and configuration via our VictronConnect
app
