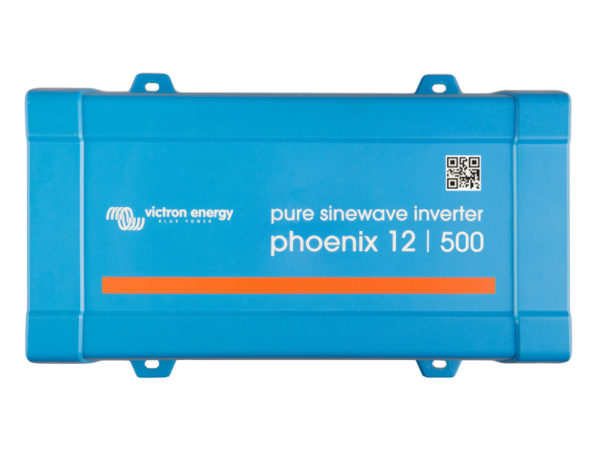

12V Victron Energy 500W(VA) Phoenix Pure Sine Inverter – PIN121501400

Victron Energy 500W(VA) Phoenix Pure Sine Inverter – PIN121501400

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50 Hz or 60 Hz
• • ECO mode on/off and ECO mode sense level

Monitoring:

In- and output voltage, % load and alarms

Proven reliability

• The full bridge plus toroidal transformer topology has proven its reliability over many years.
• The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on

Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

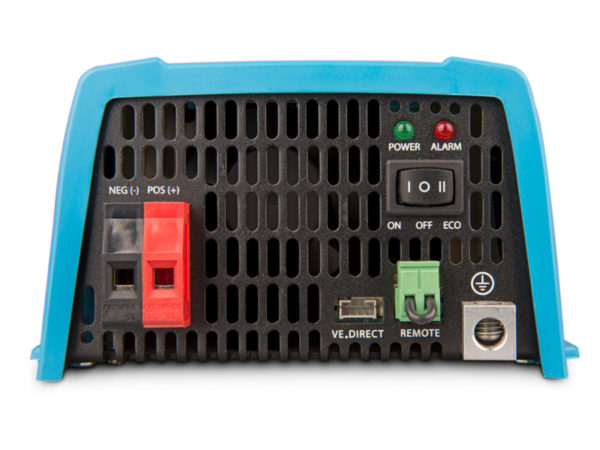

DC connection with screw terminal

No special tools needed for installation

Technical Specification

• 12 Volt
• Cont. power at 25°C (1)500VA
• Cont. power at 25°C / 40°C  400 / 350W
• Peak power  900W
• Output AC voltage / frequency (adjustable) 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input voltage range 9,2 – 17v
• DC low shut down (adjustable) 9,3v
• Dynamic (load dependent) DC low shut down (fully configurable)
• DC low restart and alarm (adjustable) 10,9v
• Battery charged detect (adjustable) 14,0v
• Max. efficiency 90%
• Zero-load power  6vW
• Default zero-load power in ECO mode
• (default retry interval: 2,5 s, adjustable) 1
• ECO mode stop and start power setting Adjustable
• Protection (2) a – f
• Operating temperature range -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
• Humidity (non-condensing) max 95%

ENCLOSURE

• Material & Colour Steel chassis and plastic cover (blue Ral 5012)
• Battery-connection Screw terminals
• Maximum cable cross-section 10 mm² / AWG8

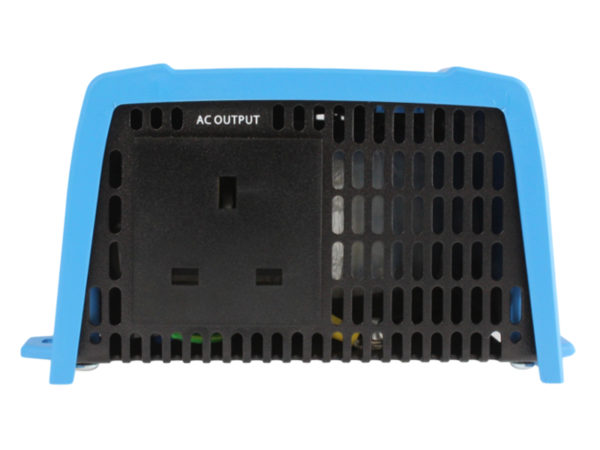

• Standard AC outlets UK (BS 1363)
• Protection category IP 21
• Weight 3,9kg
• Dimensions (hxwxd, mm) 86 x 172 x 275

ACCESSORIES

• Remote on-off Yes
• Automatic transfer switch Filax

STANDARDS

• Safety EN-IEC 60335-1 / EN-IEC 62109-1
• EMC EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4
