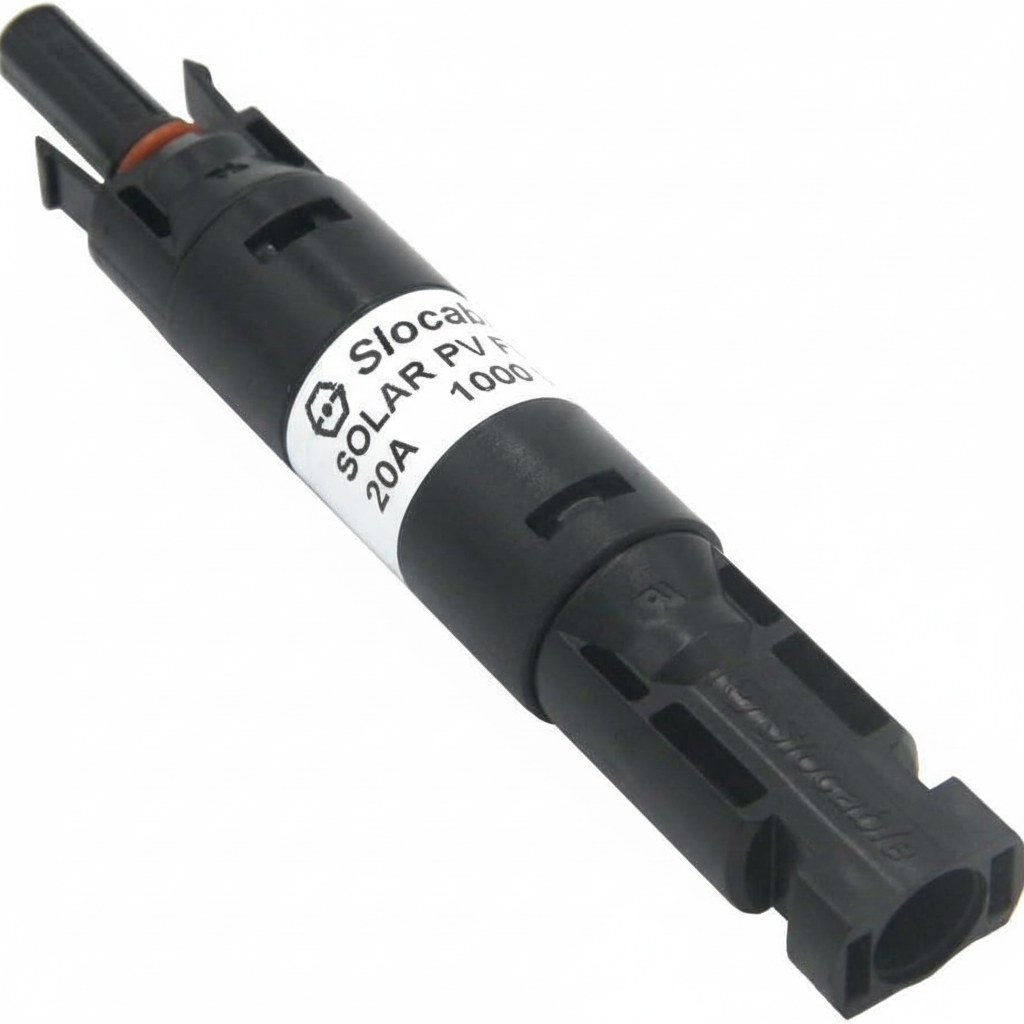

20A MC4 Inline Fuse and Waterproof Holder M/F

This product is a 20A  fuse embedded into a waterproof fuse holder. It features an MC4 connector lead on each […]
Upgrade to Express Delivery and order before 3PM for delivery next working day!
Product Summary
Xplorer™
Capacity (Ah)
Warranty (Years)
1
H: mm x W: mm x L: mm

£9.99Including VAT & Standard Delivery
Express Delivery Available

This product is a 20A  fuse embedded into a waterproof fuse holder. It features an MC4 connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. This Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.
Rated Current: 20A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz;1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: Male and female Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper; Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C

KEY FEATURES

  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.
  • Waterproof – IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity.
  • Protection Class II.
  • Connector adopts touch and insertion of reed with inner-knob type.
Brand

Xplorer™

Product Type

Inline Fuse

Warranty (Years)

1
