Original price was: £327.99.£225.00Current price is: £225.00.Including VAT & Standard Delivery
Express Delivery Available

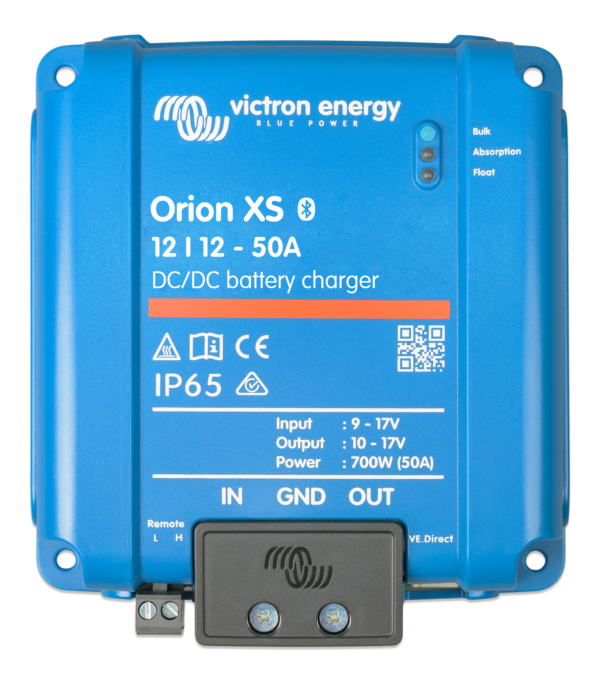

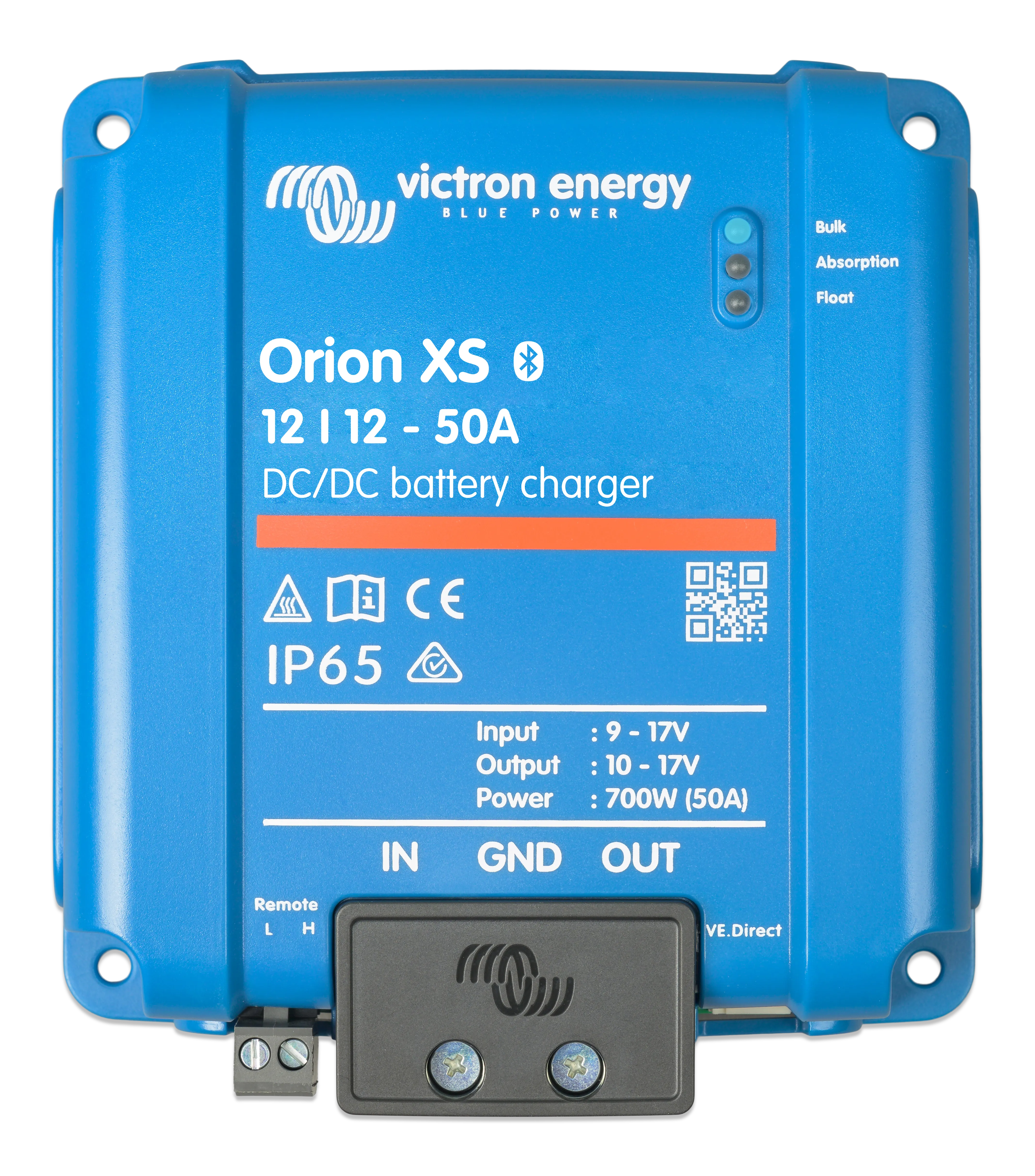

12V Victron Energy Orion XS 12/12-50A DC-DC Battery Charger – ORI121217040
Need Cable? Please see our range here
Engineered from the ground up, the Orion XS redefines DC-DC battery to battery charging. For perfect use in dual battery systems charged with an (intelligent) alternator.
This device not only ensures top-tier performance but also guarantees the safety of your system.
Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminium circuit board technology means less heat, without the need for fans.
As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system
Fully configurable
Bluetooth enabled
Efficient cooling
Engine running detection
Works with VictronConnect
Intelligent charge algorithms
Remote monitoring optional
Parallel to increase output current
An unlimited number of Orion XS devices can be connected in parallel. Making scaling the output current to match your system’s requirements easy.
With its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieving a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.
Adaptive charge algorithm
The Orion XS includes customizable charging algorithms and 8 preset battery modes. For lead acid batteries, these settings ensure optimal absorption times for both shallow and deep discharges.
Complete electronic protection
The Orion XS comes equiped with comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce the output power when maximum product temperature is reached.
Low temperature shutdown & undervoltage protection
To prevent damage of lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.
Dust & waterproof
The Orion XS is designed to withstand dust and water pollution and has an IP65 classification.
| Height (mm) | 137 |
|---|---|
| Length (mm) | 123 |
| Width (mm) | 40 |
| Amps | 50 |
| Brand | Victron |
| Product Type | DC/DC Chargers |
| Voltage | 12V |
| Warranty (Years) | 5 |
| Weight (kg) | 1.8 |
-
