Product Summary
Renogy
Capacity (Ah)
100
Warranty (Years)
5
H: 187mm x W: 172mm x L: 289mm

£769.98Including VAT & Standard Delivery
Express Delivery Available

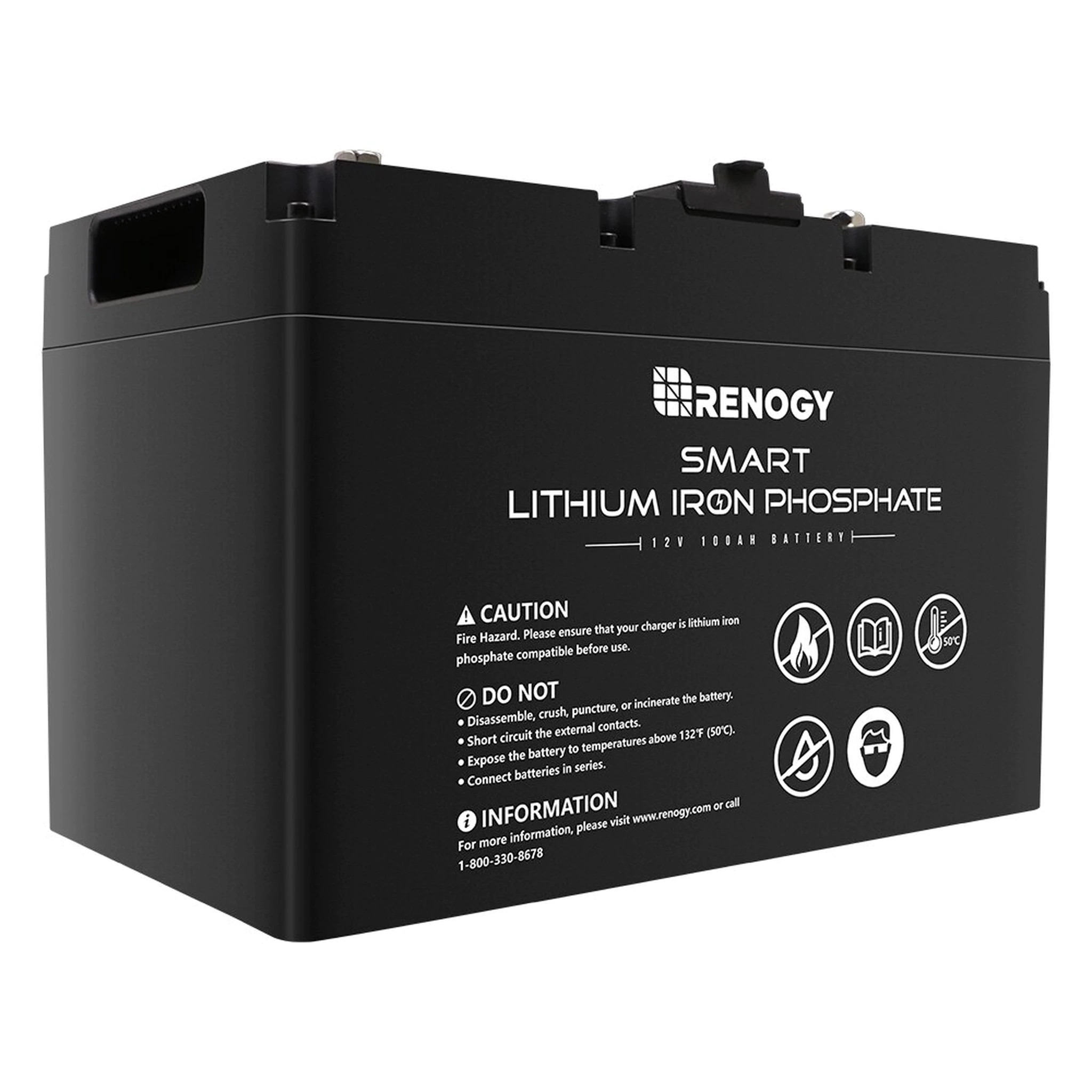

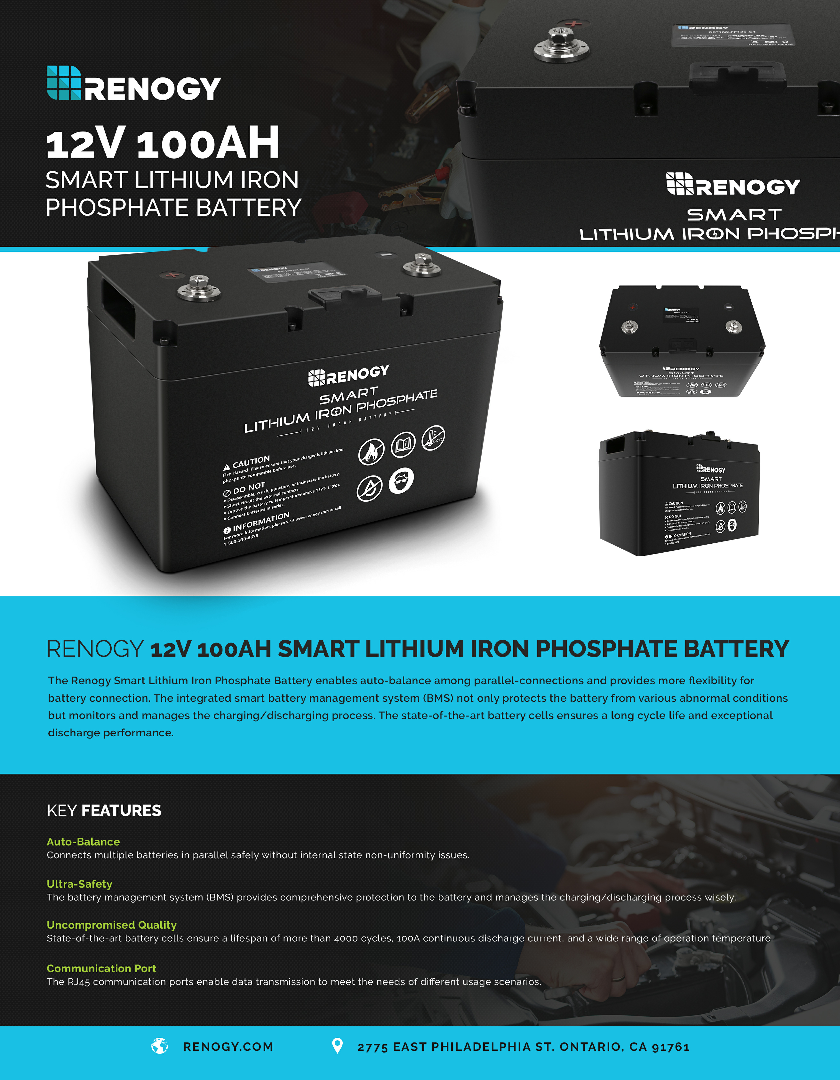

The Renogy Smart Lithium Iron Phosphate Battery enables auto-balance among parallel-connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) not only protects this 12V 100Ah LiFePO4 battery from various abnormal conditions but monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, then this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect plug-and-play solution for you!

The Renogy Adventurer Li and Rover charge controller are fully compatible with this battery plus many other types

Please kindly note that the new Renogy BT-2 bluetooth module with RJ45 port is compatible with this smart Li battery.

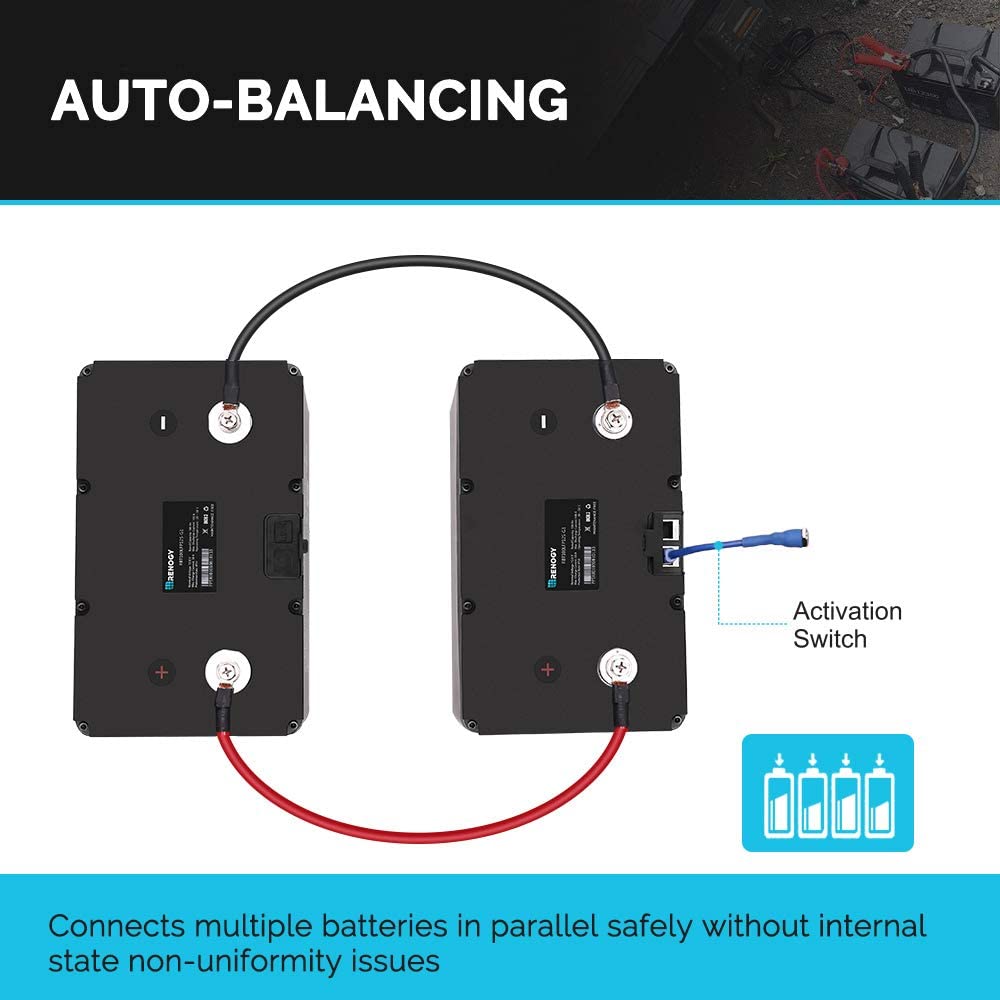

Auto-Balance

  • Connects multiple batteries in parallel safely without internal state non-uniformity issues.

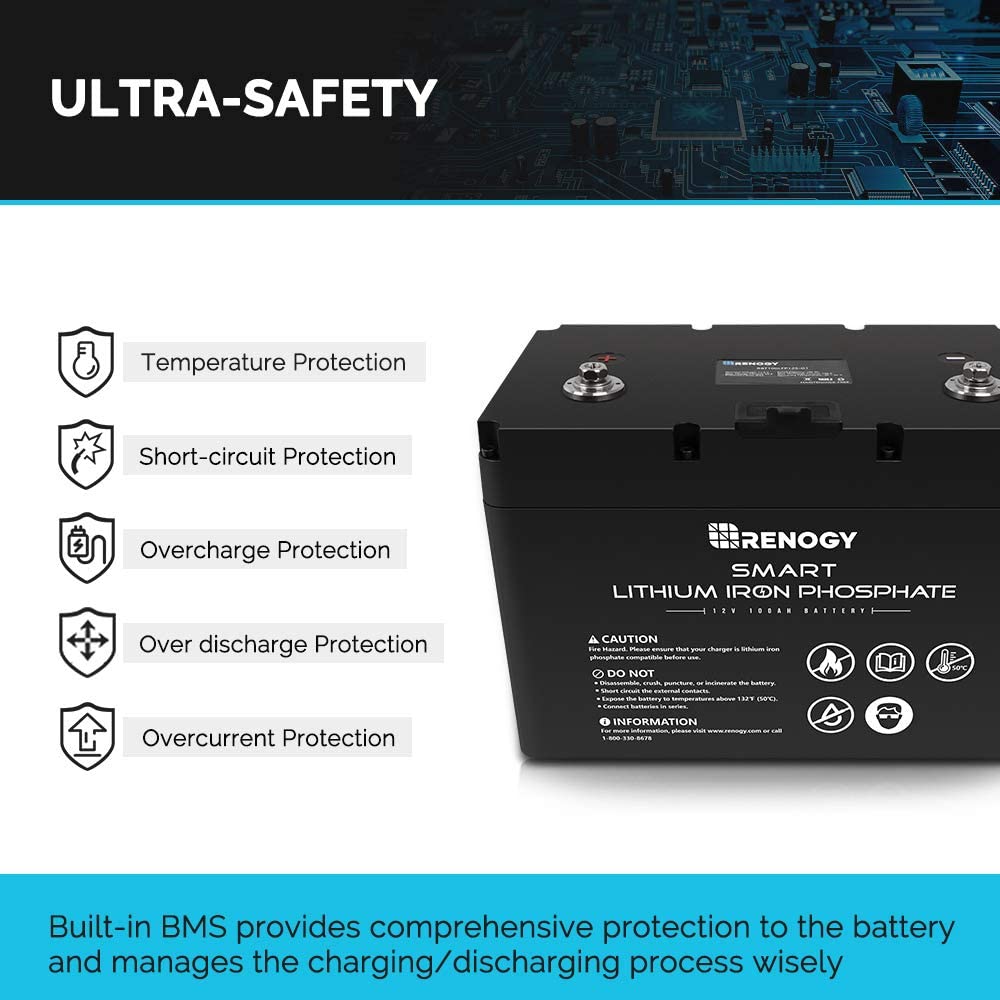

Ultra-Safety

  • The battery management system (BMS) provides comprehensive protection to the battery and manages the charging/discharging process wisely.

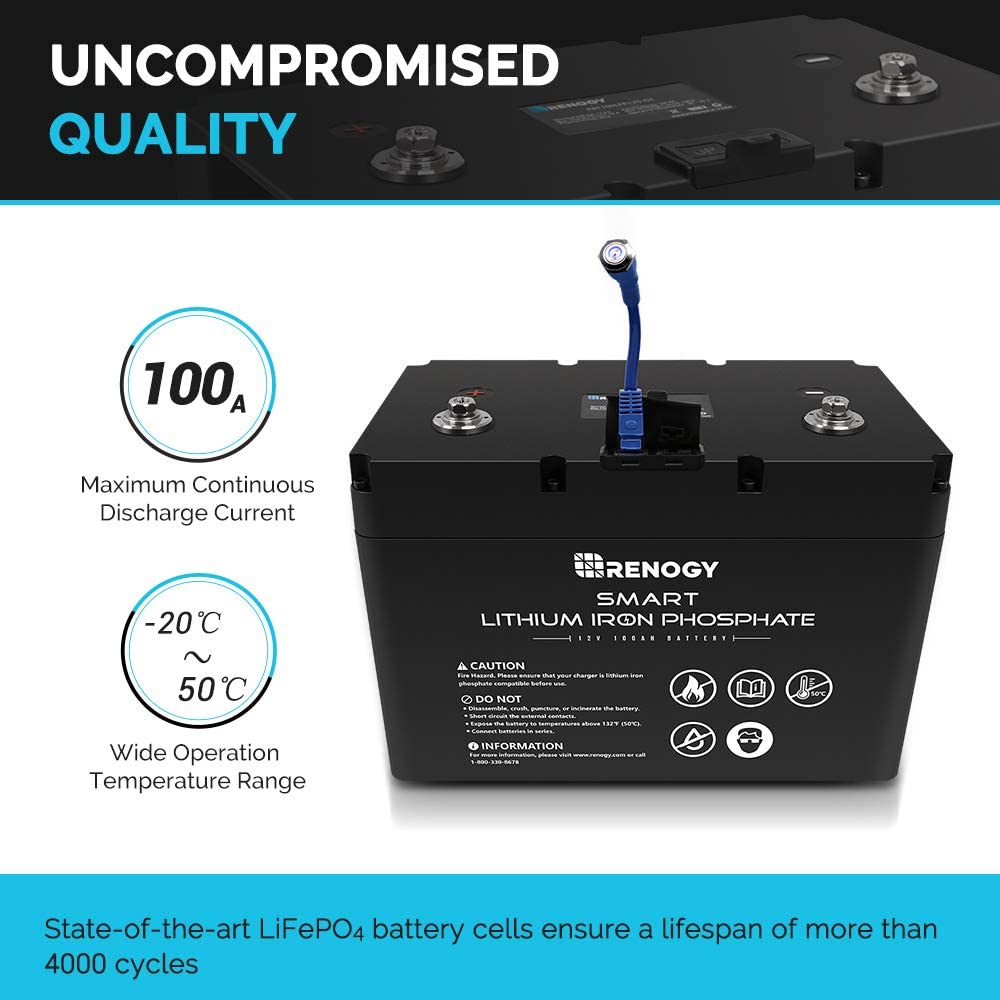

Uncompromised Quality

  • State-of-the-art battery cells ensure a lifespan of more than 4000 cycles, 100A continuous discharge current, and a wide range of operation temperature.

Communication Port

  • The RJ45 communication ports enable data transmission to meet the needs of different usage scenarios.
SPECIFICATIONS
Rated Capacity: 100Ah Insulation Resistance: 500V DC, ≥ 10 MΩ
Operating Charge Temperature: 32~131°F/ 0~55°C Maximum Continuous Charging Current: 50 A
Operating Discharge Temperature: -4~140°F/ -20~60°C Maximum Continuous Discharging Current: 100 A
Voltage Range: 10~14.8 V Communication Port: RJ45 (RS485 Protocol)
Nominal Voltage: 12.8V Storage Temperature: -13~149°F/ -25~65°C
Connection Method: Parallel Cycle Life: ≥4000 Cycles @ 80% DoD

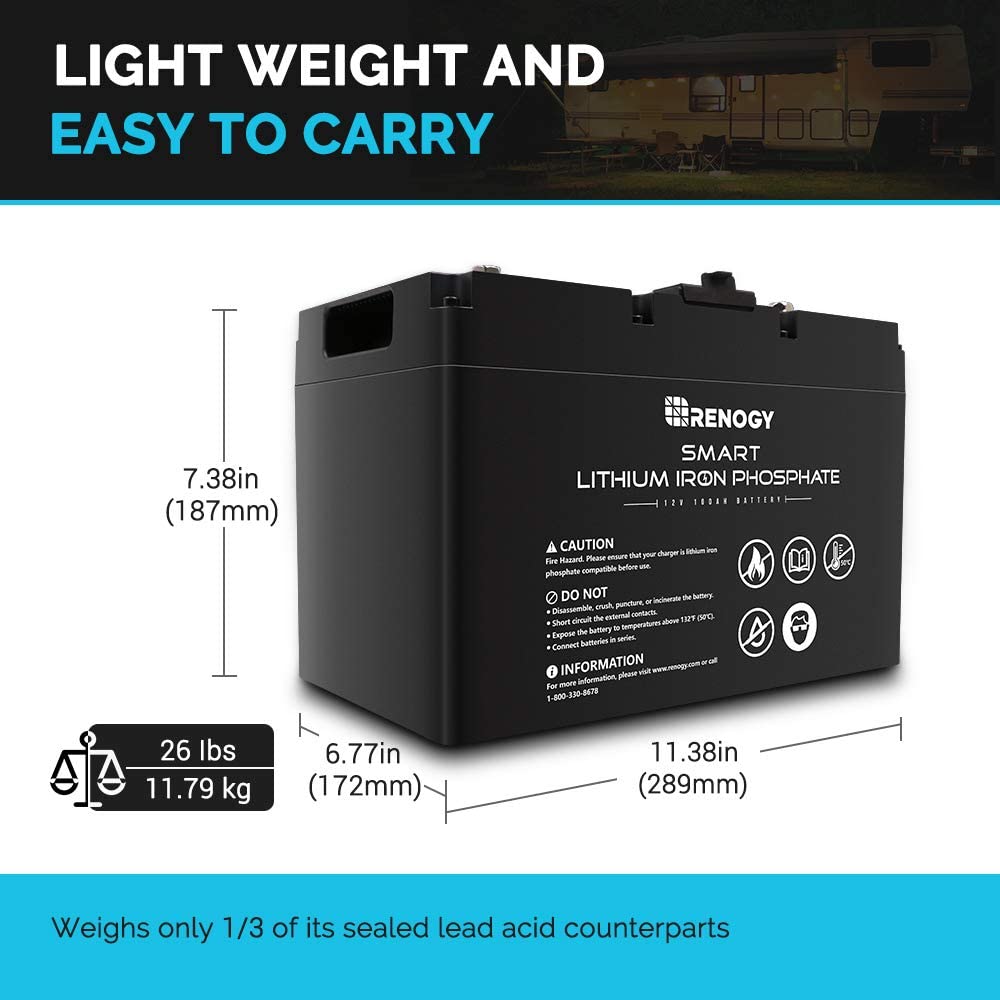

Dimensions:11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm Weight: 26 lbs. / 11.8 kg
Certifications: UN38.3, MSDS, UL1642 (Lithium Cell) Battery Terminal Bolts: M8x1x14mm
Protection Rate: IP54 Additional Terminal Bolts: M8x1x20mm
Height (mm)

187

Length (mm)

289

Width (mm)

172

20 Hour

100

Brand

Renogy

Capacity (Ah)

100

Construction

Lithium

Maintenance Free

Yes

Recharge Cycles

4000

Suitable for use with motor mover?

Yes

Suitable for wild camping?

Yes

Terminal Layout

Positive on Left (Layout 1)

Terminal Type

Bolt Through Terminals (Type 2)

Voltage

12V

Warranty (Years)

5

Weight (kg)

11
