12v 24ah Xplorer Base Lithium Battery

12V Xplorer Base 24ah  Lithium Battery Our Base series is a great way to enter the world of and benefits […]
Upgrade to Express Delivery and order before 3PM for delivery next working day!
Product Summary
Xplorer™
Capacity (Ah)
24
Warranty (Years)
5
Terminal Layout
Terminal Type
H: 167mm x W: 77mm x L: 181mm

£99.98Including VAT & Standard Delivery
Express Delivery Available

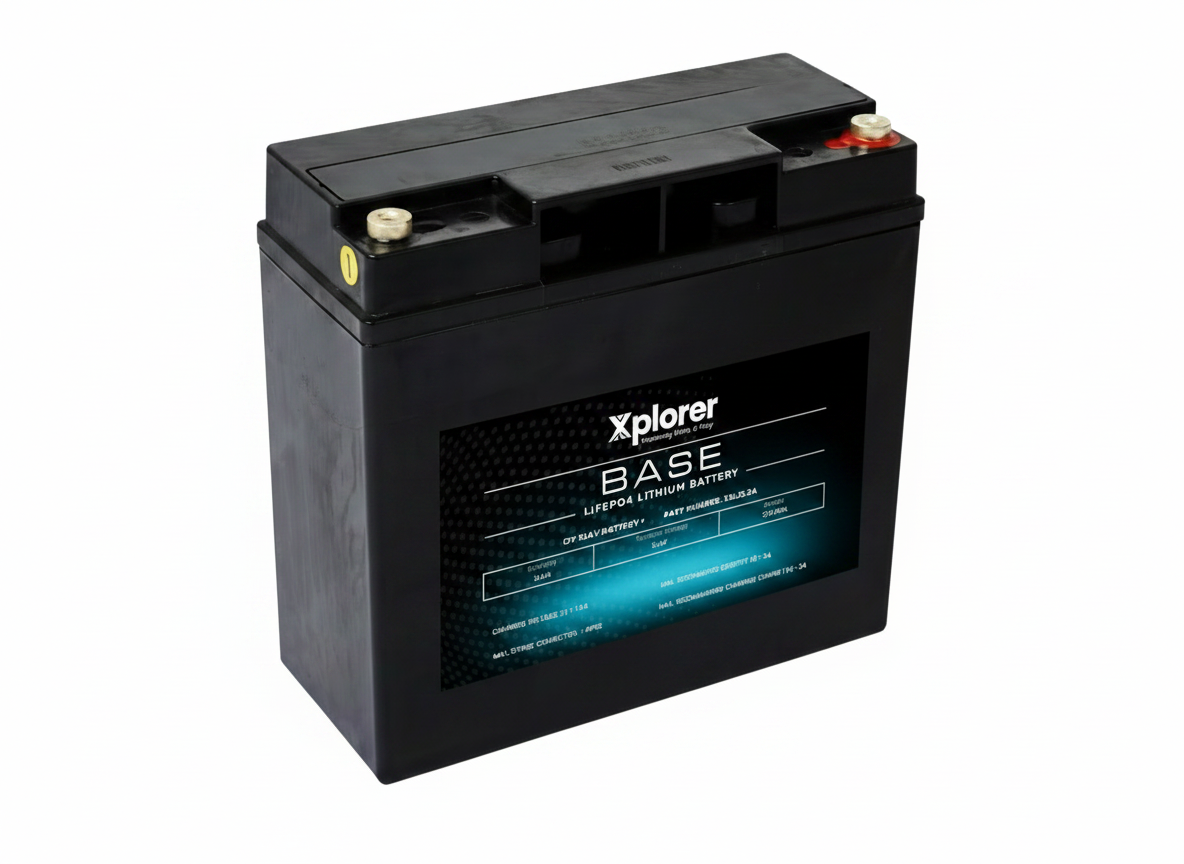

12V Xplorer Base 24ah  Lithium Battery

Our Base series is a great way to enter the world of and benefits of Lithium Batteries at an affordable price tag. Ideal for a wide range of Applications.



The Xplorer Base has an excellent 24ah full capacity with 307.2Wh of usable energy and comes in a neat compact size for a wide range of fitment options.



True Battery specialists and support

Established since 2008, Alpha Batteries has a dedicated UK based support team here to help and support both pre and after sale

Replaces older Lead acid types:

Equivalent replacement to:

LSLC22-12, ENC22-12, PLC22-12, DC12-22-XDC, ADC12-25EV, DC17-12, DC20-12, ENG22-12, REC22-12, NP22-12, LPC12-22, LP12-22, BAT212200084, HR12-22, Haijiu HJZ12183, 118120007/0



Built for the future

2000 Cycles at 100% depth of DischargeWhy worry about fully discharging your battery. Harness the true potential of your battery by discharging to 100% up to 2000 times*

5 Year Leading warranty: Covering manufacturing defects and workmanship

High Quality Components: Grade A prismatic cells and BMS protection for peace of mind



Versatility,Scale & True Power

Build and Scale: Add up to two batteries in Parallel or four batteries in Series

Full usable Power: Discharge a full 24A with ease equating to 307.2Wh of energy





*The suggested number of lifetime cycles & capacity is an indication based on manufacturer laboratory test conditions .  The amount of useable energy and cycle life will vary due to multi applicational factors, usage pattern, discharge times,charging, maintenance and climatic conditions . A battery can deliver only a fixed amount of Energy and capacity over its life which will occur over different periods of time depending on the application and conditions.







Height (mm)

167

Length (mm)

181

Width (mm)

77

BMS

Yes – Over charge,Over discharge, Over
temperature, Low Temperature,
Over Current, Short circuit Protection

Brand

Xplorer™

Capacity (Ah)

24

Certification

UN38.3; ROHS; IEC62619; UL1973

Charging Temp

-0℃~55℃

Construction

Lithium (LiFePO4)

Discharge Temp

-20~55℃

Energy

307.2wh

IP Class

ip67

Ideal Charge Voltage

14.2v -14.6v

Lithium Cell Type

Grade A LifeP04 Cylindrical UN38.3; ROHS; IEC62619; UL1973; UL9540A

Max Discharge Current

12A

Paralell Connection

Yes – 4 max

Product Type

Battery

Recharge Cycles

2000

Subzero Charging

NO

Voltage

12V

Warranty (Years)

5

Weight (kg)

3.8
