Product Summary
Amps
10
Warranty (Years)
5
H: mm x W: mm x L: mm
£149.99Including VAT & Standard Delivery
Express Delivery Available

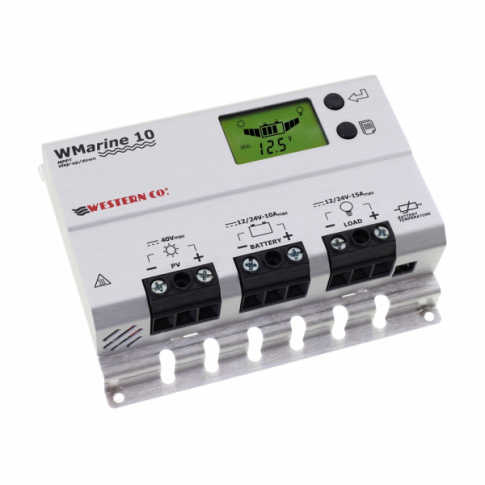

his 10A MPPT solar charge controller (12V/24V) is ideal for CIGS low-voltage panels thanks to its buck-boost MPPT design. It can intelligently convert a wide range of panel voltages into the correct charging voltage for your battery — even when the panel voltage is below the battery voltage.
That puts it a step ahead of many conventional MPPT controllers, which typically need the solar panel voltage to stay higher than the battery voltage. For example, you can run a 9V solar panel and still charge a 12V or 24V battery. You still get the core MPPT advantage too: improved energy harvest and higher overall yield compared to basic PWM controllers.
Controller specifications:
- The most advanced MPPT technology to ensure high efficiency of your solar system
- Brand new advanced buck boost technology enabling the voltage increase of your solar panels
- Fully automated operation and auto 12V/24V battery voltage selection
- 3 pairs of terminals (input, battery, load) for wires up to 10mm2
- Maximum solar input 120W (12V battery) / 220W (24V battery) up to 40V
- Battery temperature sensor with automatic compensation (-24mV/C)
- Comprehensive electronic protection features
- Self-consumption: 12.7mA
- Working temperature: -10C to +40C
- Size: 16 x 13.5 x 5cm
- Weight: 515g
- Multiple mounting holes for ease of installation
Built-in electronic protections
A full suite of safety features helps protect both your battery and system, including:
- Overcharge protection (automatic cut-off)
- Deep discharge protection
- Night-time reverse current protection (prevents back-feed)
- Overload protection
- Short-circuit protection
- Reverse polarity protection
Clear LCD monitoring
The integrated LCD screen provides live system data at a glance, including:
- Solar and battery voltage, current, and power
- Energy counter
- Temperature
- Load settings and parameters
Flexible setup for different battery types
You’ll also get:
- 18 load operating programmes
- Remote temperature sensor
- Preset charging profiles for sealed, gel, flooded lead-acid, and lithium batteries
- Optional advanced setup for custom battery charging voltages
Panel compatibility
Suitable for solar panels with:
- Open-circuit voltage (Voc) up to 40V
- Up to 120W solar input when charging a 12V battery
- Up to 220W solar input when charging a 24V battery
| Amps | 10 |
|---|---|
| Brand | Western Co |
| Product Type | Solar Controller |
| Voltage | 12V/24V |
| Warranty (Years) | 5 |
